Loading Trolley

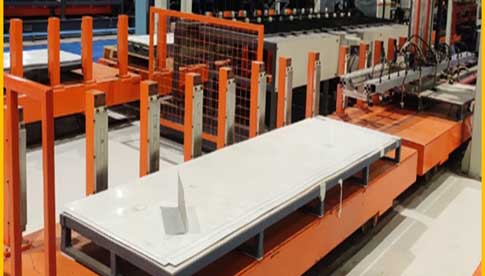

Sheet Loading Trolley – Sheet Pallet loading on trolley according to the marking as per model wise

Loading Station

Loading Station- Sheet pick up from respective trolley as per model wise & Suction Cup’s operations as per model wise selection from HMI

Centering Station

Centering Station – For Sheet centering, One side roller are fixed Other side roller adjustment according to sheet size by servo operations.

Punching Station

Punching Station – According sheet model recipe selection punching operations takes place.

Roll Former Station

Roll Former Station –Roll forming operations takes place from one side which is fixed end & other side servo adjustment as per model wise

Positioning Station

Positioning Station – After Rolling operations sheet positioning & width adjustment takes place at positioning station

Manipulator

Manipulator–After sheet positioning operations , Manipulator operations start for sheet transferring from positioning station to till U bending station.

Z1 Bending Station

Z1 Bending Station – At this station end fold 1 takes place for sheet’s front & rear side simultaneously.

Z2 Bending Station

Z2 Bending Station–At This Station end fold 2 takes place for sheet’s Front & Rear side simultaneously with bend angle on both side

U Bending Station

U Bending Station – At this station Final U bend takes place for sheet’s front & rear side simultaneously
